EmbSoft Technologies presents a very efficient and compact dc drive controller powered by ARM Cortex-M0 MCU. Our Drives can control any make of Thyristors (various power ratings). This Product accepts various input options such as Digital Push Buttons, 0-10Volt, Universal input 4-20 mAmp.

Features:

1. Product is Powered By Arm Cortex-M0 MCU
2. PID controlled closed-loop system for CV & CC Modes. These Modes maintain Constant Voltage with Current limit
3. HMI is Equipped with 16x2 digit backlit LCD Display, 4 Push Buttons
4. Various parameters can be through 4 push buttons (PGM, UP, DN, ENTER)
5. The product provides a facility for SOFT START/STOP
6. All internal Fault & Status can be displayed on LCDs
7. 6 Nos. - Pulse o/p (Non_isolated) Can drive up to 6 thyristors.
8. 4 Nos. - Analog i/p
9. 6 Nos. - Digital I/p
10. 8 Nos. - Digital o/p
11. Over Voltage & Over Current Protection With Trip Signal indication

Applications:

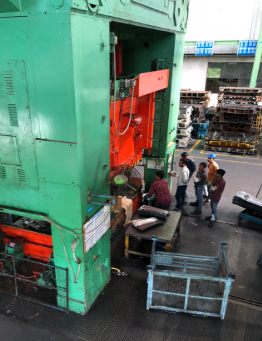

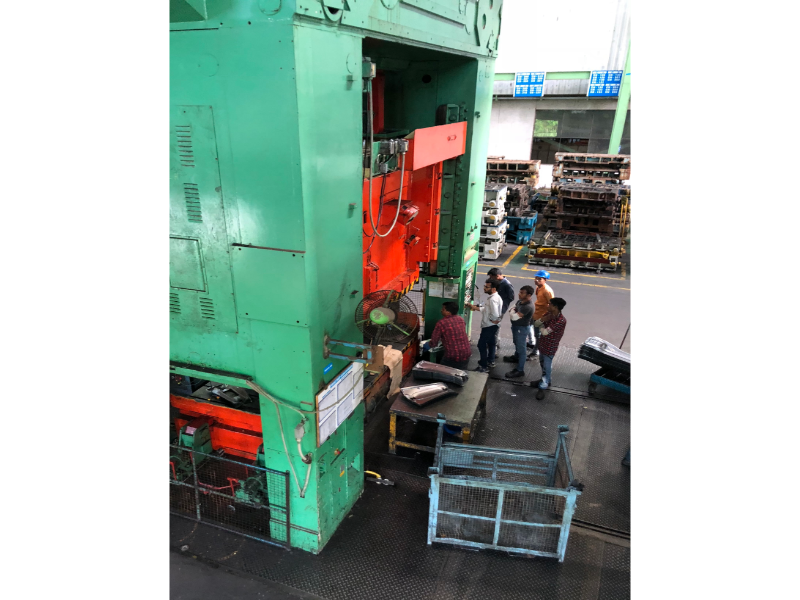

Winders, Packaging Machines, Textile Machines, Pharmaceuticals and many more..
