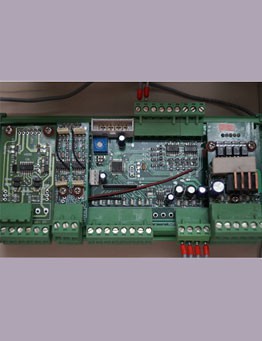

EmbSoft Technologies presents a very efficient and compact Chopper Controller powered by ARM Cortex-M0 MCU. Chopper Controller controls the DC Link Voltage of Medium Frequency Induction Furnace to improve Power Factor.
Features:
- Product is Powered By Arm Cortex-M0 MCU
- PID controlled closed-loop system for PWM control of chopper to maintain a required power
- For Sturdy and efficient performance IGBT from SEMIKRON and SKYPER32-PRO Igbt Drivers have been used in the product
- HMI is Equipped with 16x2 digit backlit LCD Display, 4 Push Buttons
- Various parameters can be through 4 push buttons (PGM, UP, DN, ENTER)
- The product provides a facility for SOFT START/STOP
- All internal Fault & Status can be displayed on LCD
- 4 Nos. - Analog i/p
- 6 Nos. - Digital I/p
- 8 Nos. - Digital o/p
