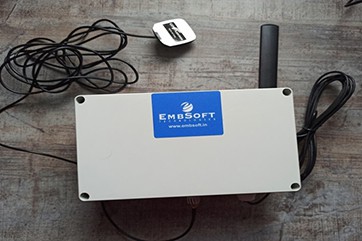

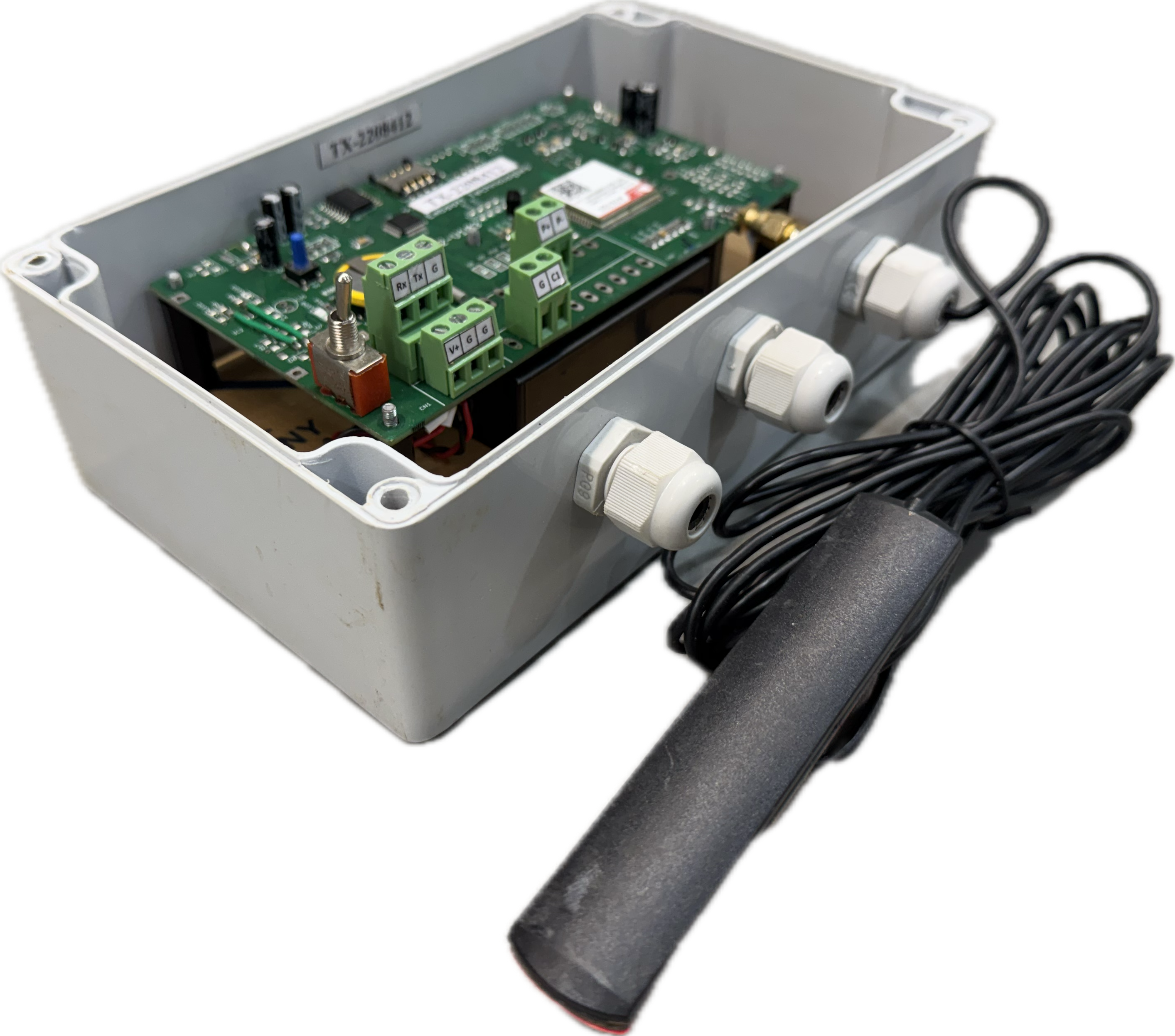

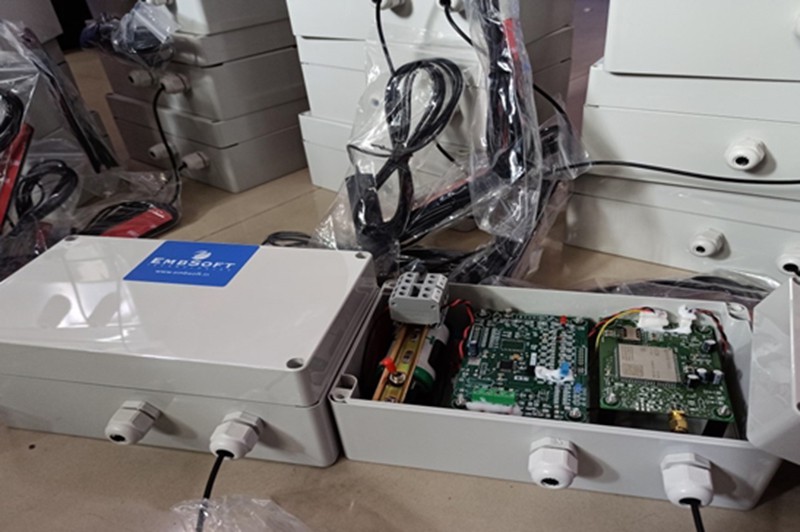

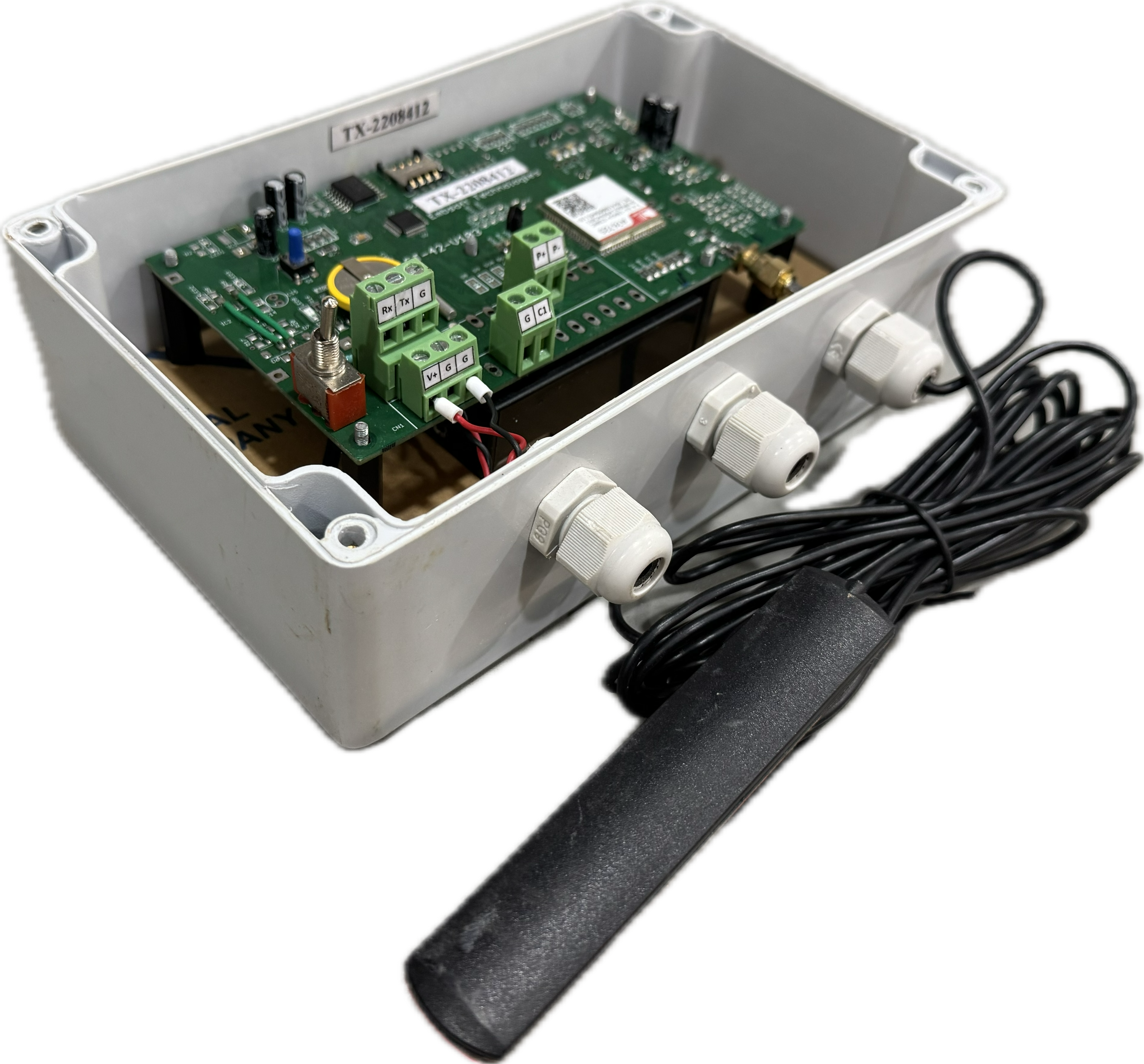

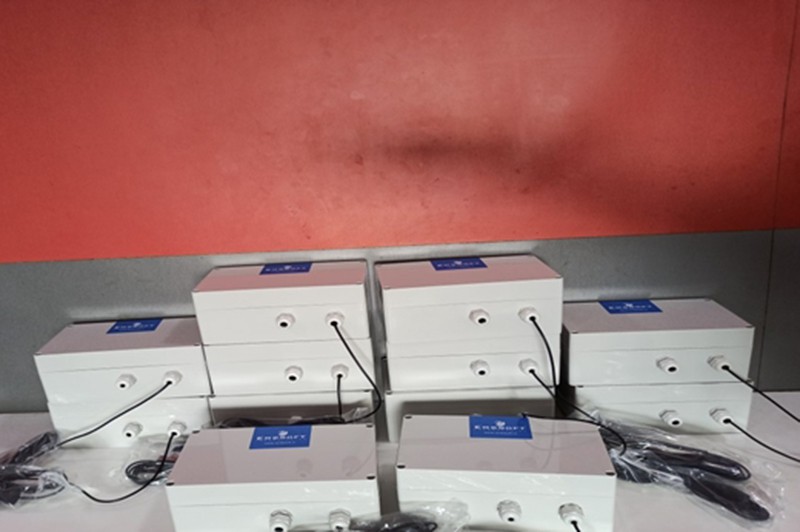

The EMB-DTLG is an intelligent Active GPRS/GPS Remote Terminal Unit. Within the high- performance ARM 32BIT CPU, the EMB-DTLG is suited for the hard industrial environment. It features GPRS/GSM -GPS module, 4 digital inputs,4 digital outputs, 4 analog Input, 1 RS-485, etc..
Features:
| Voltage Supply |
10-30 VDC |
| Battery Supply |
Li-Ion (Based on the Requirement) |
| Sim Card Support |
2G/3G/4G |
| GPS Enability |
Based on the Requirement |
| Antenna |
4G & GPS (Upto 3 meter Cable) |
| Digital Input |
4 |
| Digital Output |
4 |
| Analog Input |
4 |
| Wireless Protocol |
SMS/HTTP/MQTT |
| Interface Protocol Support |
1 - RS485(MODBUS) Others are available Based on the Requirement |
| Casing |
IP65 |
Applications:
It can be used in M2M application fields to transfer the local I/O or Modbus device’s data by GPRS by the defined period or DI/AI triggers. The local I/O data can also be stored in the internal memory to become a remote data logger.
For another communication path, the EMB-DTLG offers the SMS OR MQTT PROTOCOL mode to transfer the data via GPRS for users to choose. The simple I/O linkage function of the EMB-DTLG can reach the real-time control in the local field. It also supports a Li-ion battery as another power source when the main power is not available. Therefore, EMB-DTLG is an ideal solution for environmental monitoring and remote device management for M2M applications.
