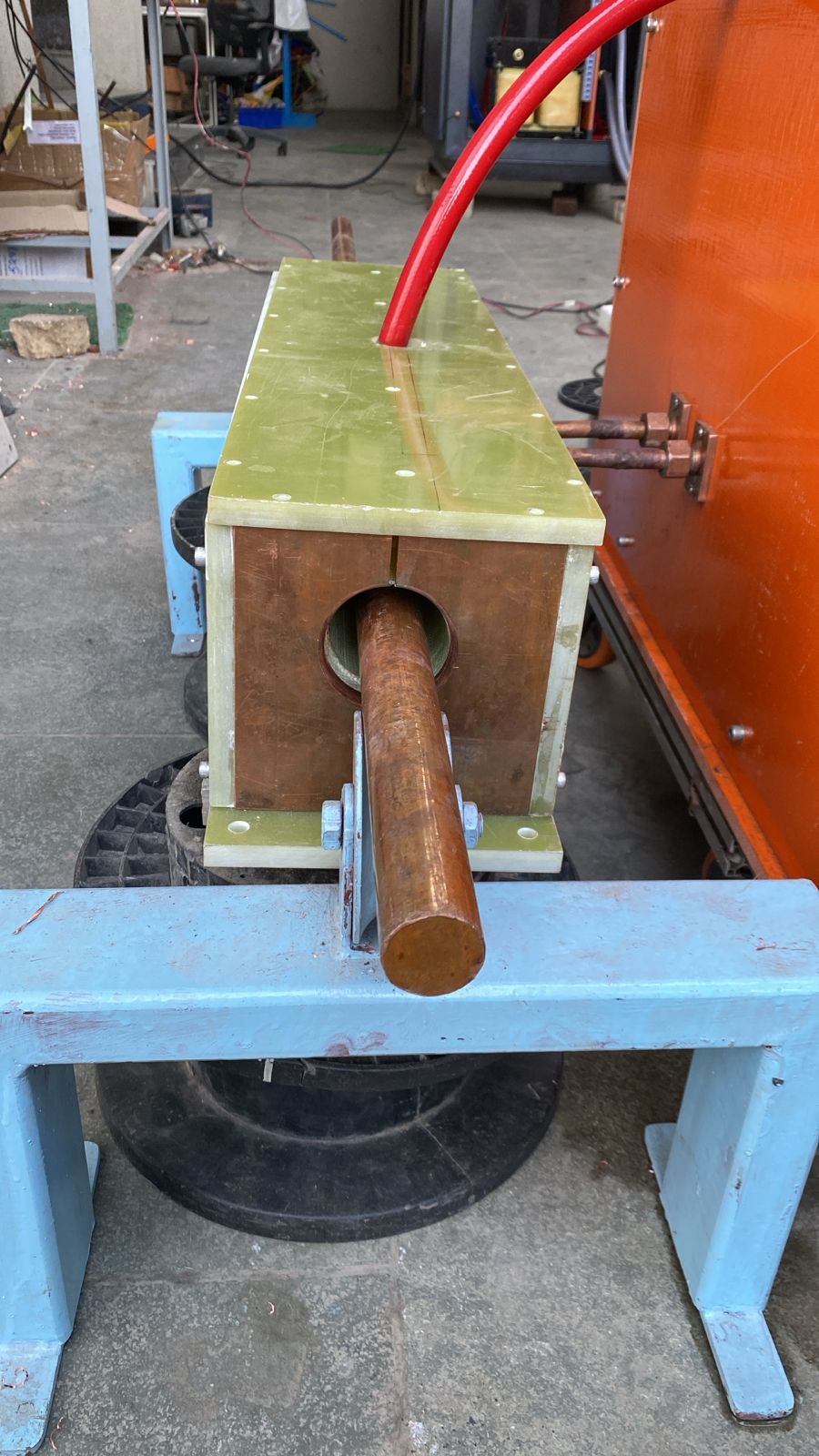

Induction wire preheating uses an alternating magnetic field to heat electrically conductive wires, such as steel, copper, or aluminium, before processing. This method is fast, efficient, and non-contact, making it ideal for applications like welding, annealing, or preparing wires for insulation extrusion.
Technical Specification:
|
Microcontroller
|
Cortex-M0
|
|
Display
|
7” Color TFT Display with Touch screen (Delta HMI)
|
|
Input
|
415Vac, 3Phase, 50Hz.
|
|
Frequency
|
7khz to 35khz with Auto Synchronization with Resonance Freq.
|
|
Power Control
|
Settable through POT in Man-Mode and 4-20mA or 0-10V in Auto Mode.
|
|
DI/DO
|
DI & DO will be provided for Remote indication & control.
|
|
Start/Stop
|
P.B. switch or HMI
|
|
Isolation
|
With HFT –Full bridge topology
|
|
Filter
|
Input CLR
|
|
Inverter
|
High-power IGBT inverter bridges with an internal water circulation
|
|
Panels
|

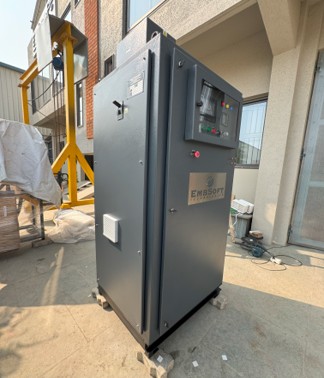

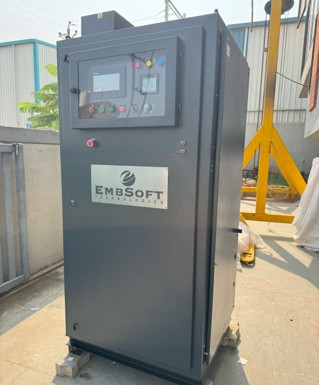

1. Two Door Power Panel. The Water structure(with internal water circulation with heat-exchanger) will be provided as a separate unit, which will be kept beside the Power Panel.
2. Resonance Tank circuit Panel (with external water cooling), which is connected to the Power Panel through a flexible copper HF cable.
|
|
External Cooling
|
Temp. of 10-20 deg C and pressure 4-10 bar with a flow of 30-40 Ltr/min.
|
|
Communication
|
Isolated RS485 with Modbus.
|
Advantages:
- High Energy Efficiency.
- Rapid Heating.
- Non-Contact Heating.
- Precise and Localized Heating.
- Environmental Benefits.
- Enhanced Safety.
Applications:
- Melting and Casting.
- Heat Treatment.
- Wire Heating.
- Automotive and Aerospace Industries.
- Joining Processes.
- Bolt Heating.
At Embsoft, we believe in moulding our products based on customer needs, so feel free to contact us anytime to tell us your exact requirements.
