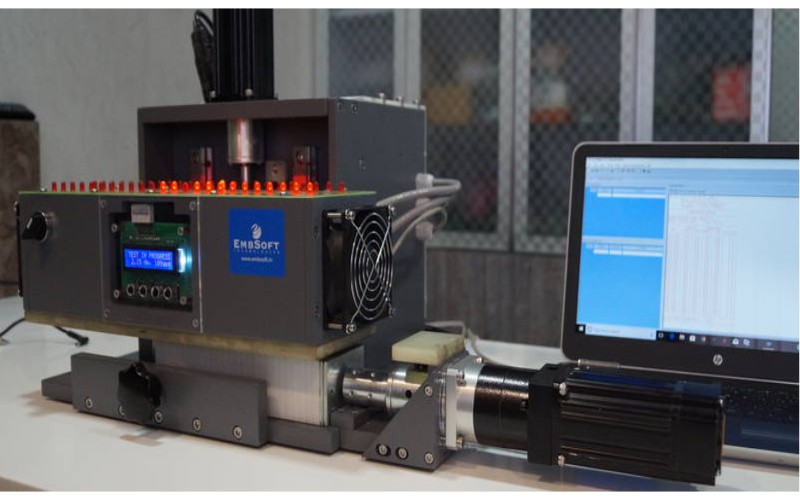

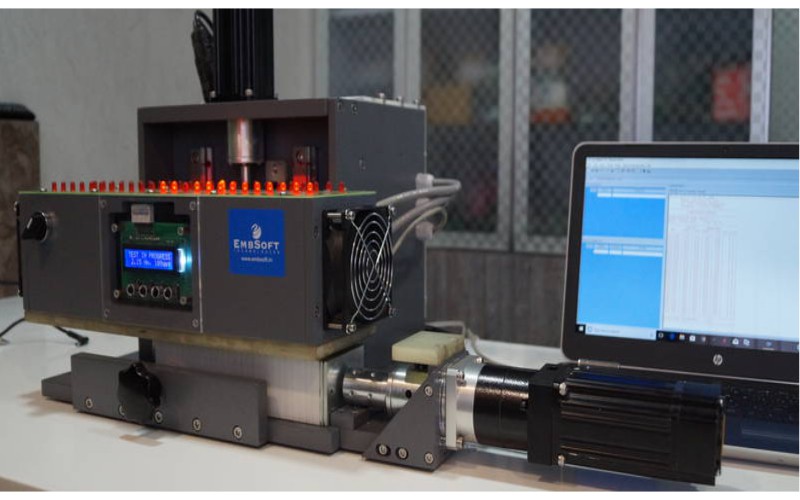

The testing procedure of the Rotary switch is very lengthy. Embsoft presents an automatic testing machine which rotates the shaft of a rotary switch every one degree and measures mv drop across all contacts. And finally generates a report on PC Software with Make degree & Break degree for all contacts. The machine can be programmed for 40 types of rotary switches.

Features:

1. Input : 230VAC
2. Display: Blue-White 16x2 LCD
3. 40 Nos. of Indicator LED’S for each contact
4. Source: 60Vdc, 1 Amp. (Internally switched for diff. contacts)
5. Contact mv : 3digits with 1 d.p.
6. No. of Contacts: maximum 45 Contact per line
7. Compatibility for 40 Different Types of rotary Switches
8. The machine will store the last 5 records internally and will be saved with date/time
9. RS232 Communication interface For LX-350 Printer connectivity
10. RS232 Communication interface For PC connectivity
